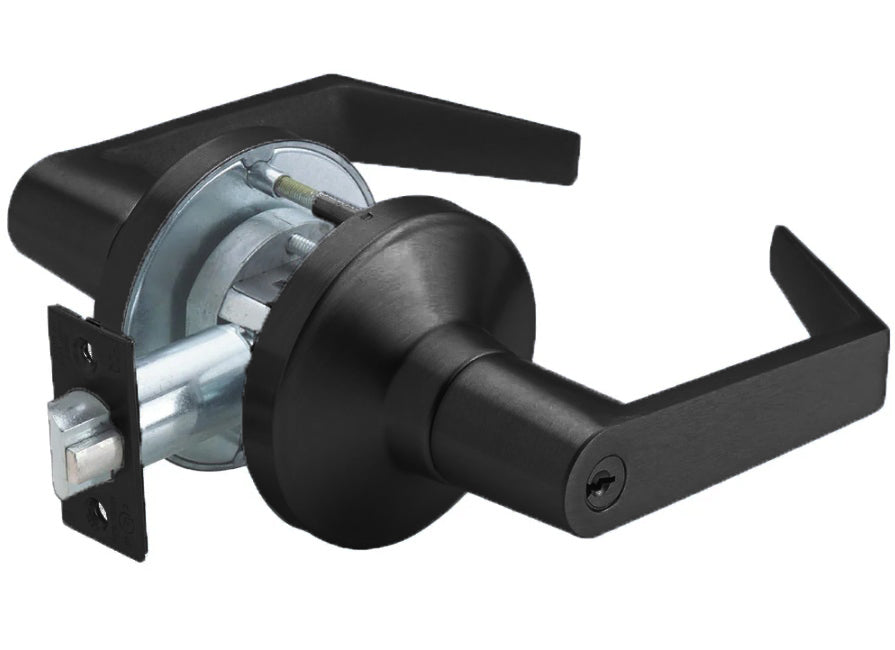

PDQ XGT115 Store Room Cylindrical Lock

ANSI Function F86 – Latchbolt operated by inside lever or key in outside lever. Outside lever always fixed. Philadelphia Lever

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed. SCC Keyway w/ 2 Keys

• SCC Keyway
• Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
• 13-gauge steel anti-rotation plate enhances stability
• Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
• Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)
• *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
• UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
• Certified to ANSI/BHMA A156.2 Grade 1 standards
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

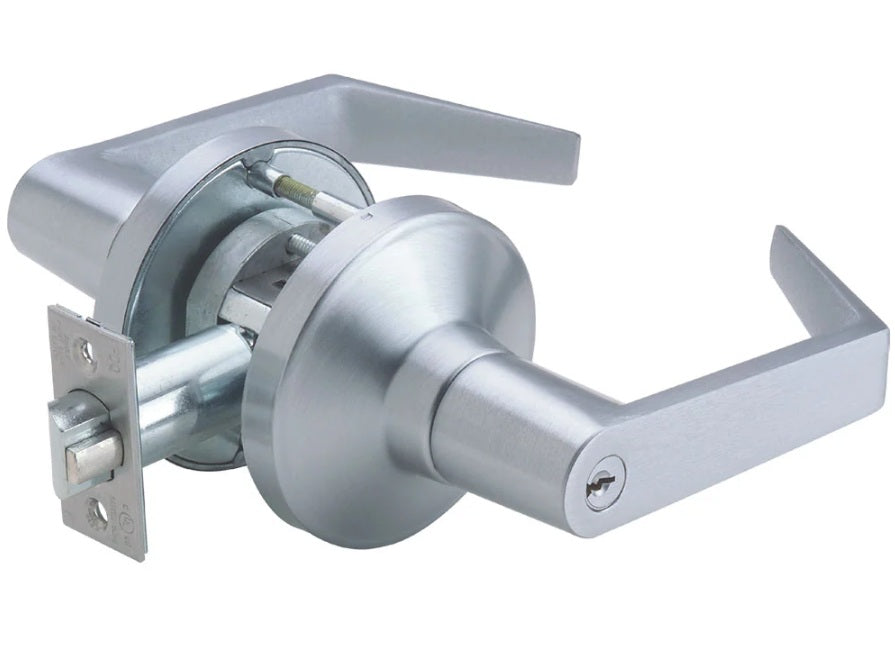

• PHL (Philadelphia) Lever Design Shown

Product Information

Templates

Installation Instruction
