Auto Flush Bolts, Wood Door

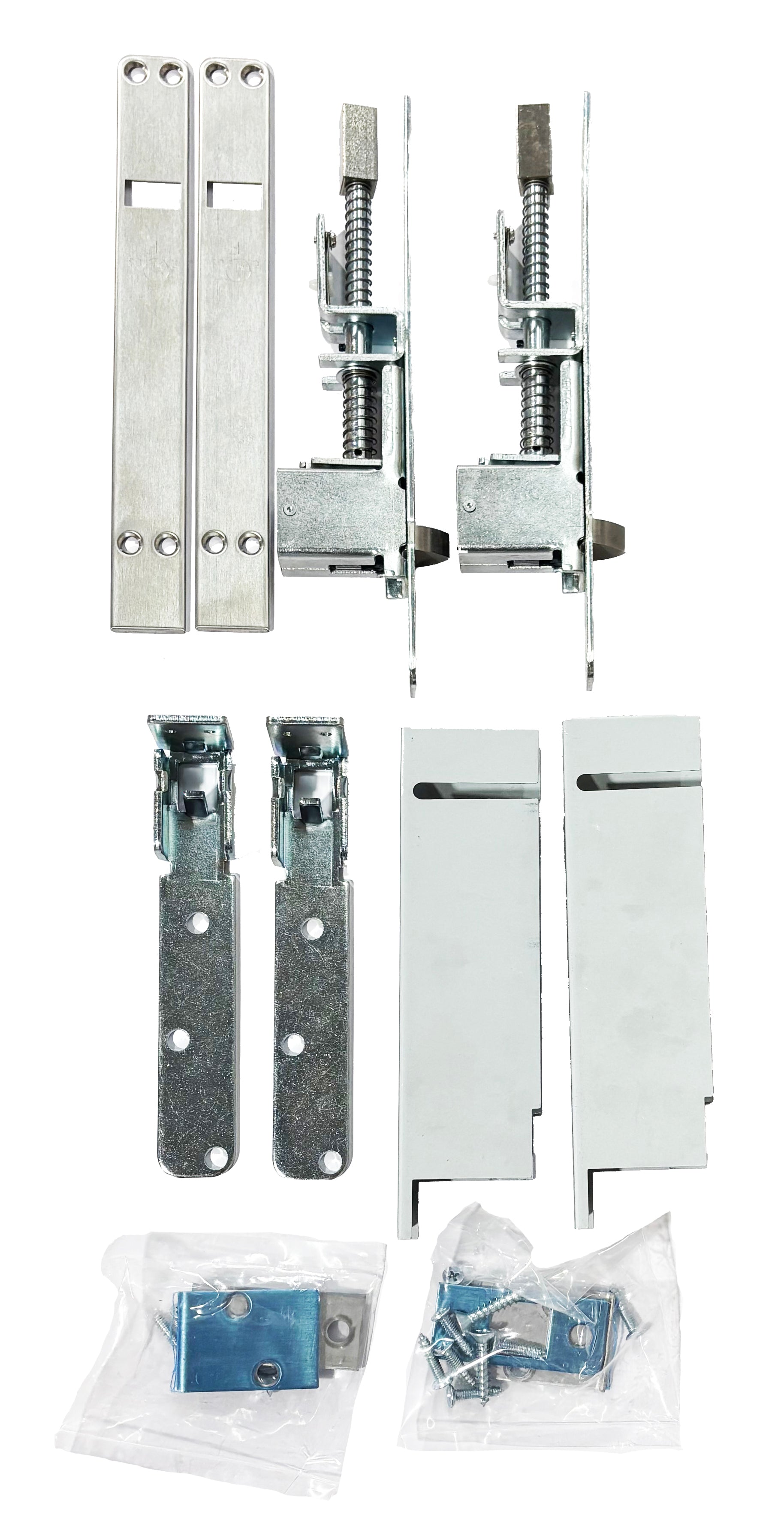

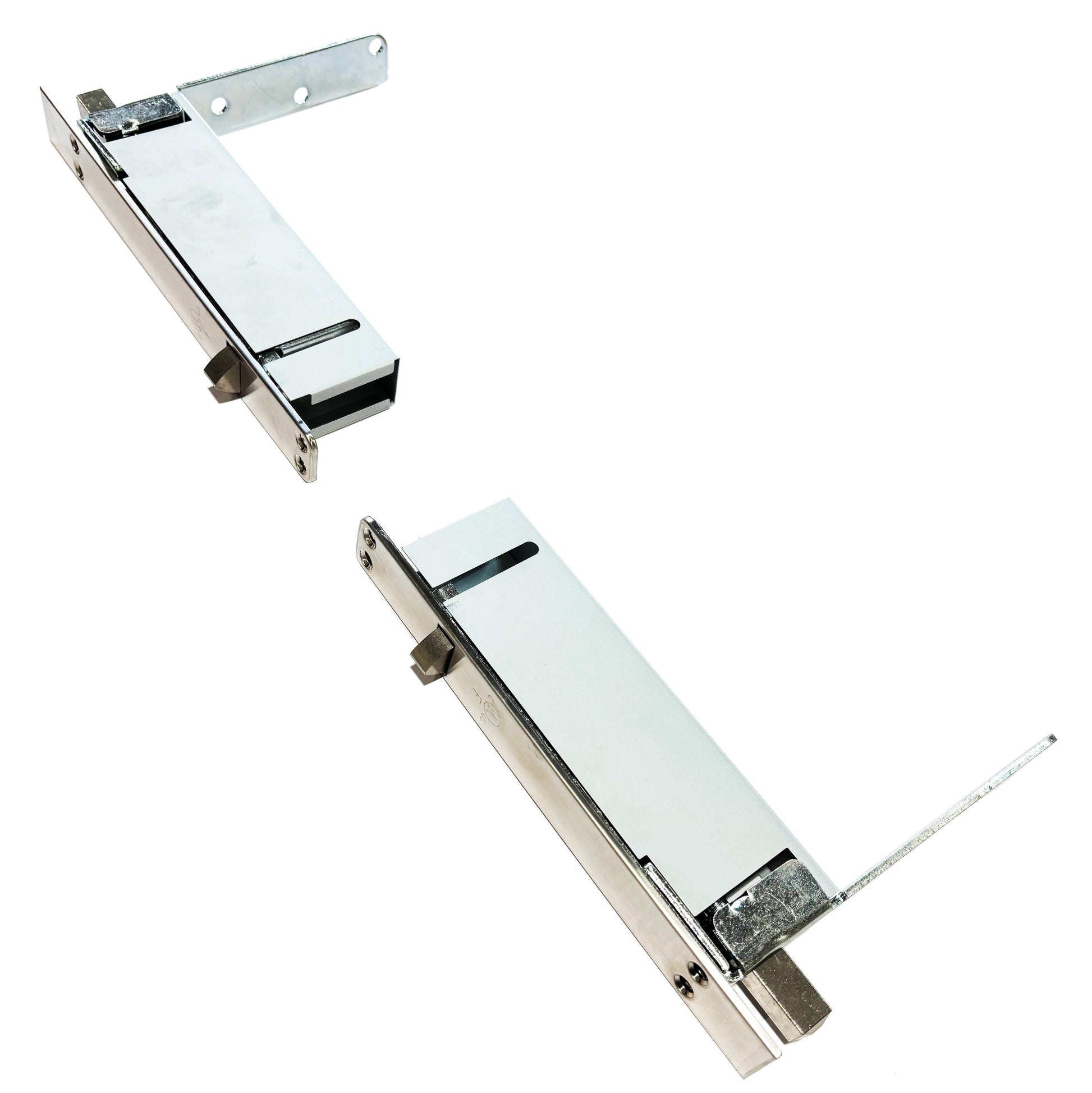

ABH 1862P Wood Door Automatic Flush Bolt Set (Top and Bottom), Satin Stainless Steel Finish

When the active door is closed, the bolt automatically projects to lock the inactive door. When the active door opens, the bolt automatically retracts to unlock inactive door

• For use with wood doors or plastic-covered composite type fire doors up to 4'0" x 8'0" up to 90-minutes
• Fully automatic–opening active door retracts top and bottom bolts
• Non-handed
• Fully automatic–opening active door retracts top and bottom bolts
• Low closing force
• Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes
• Bolt head rods are adjustable up to 1-1/2"
• Thermal lock automatically locks the inactive door under high heat conditions due to fire
• UL Listed
• ANSI 156.3 Type 25
