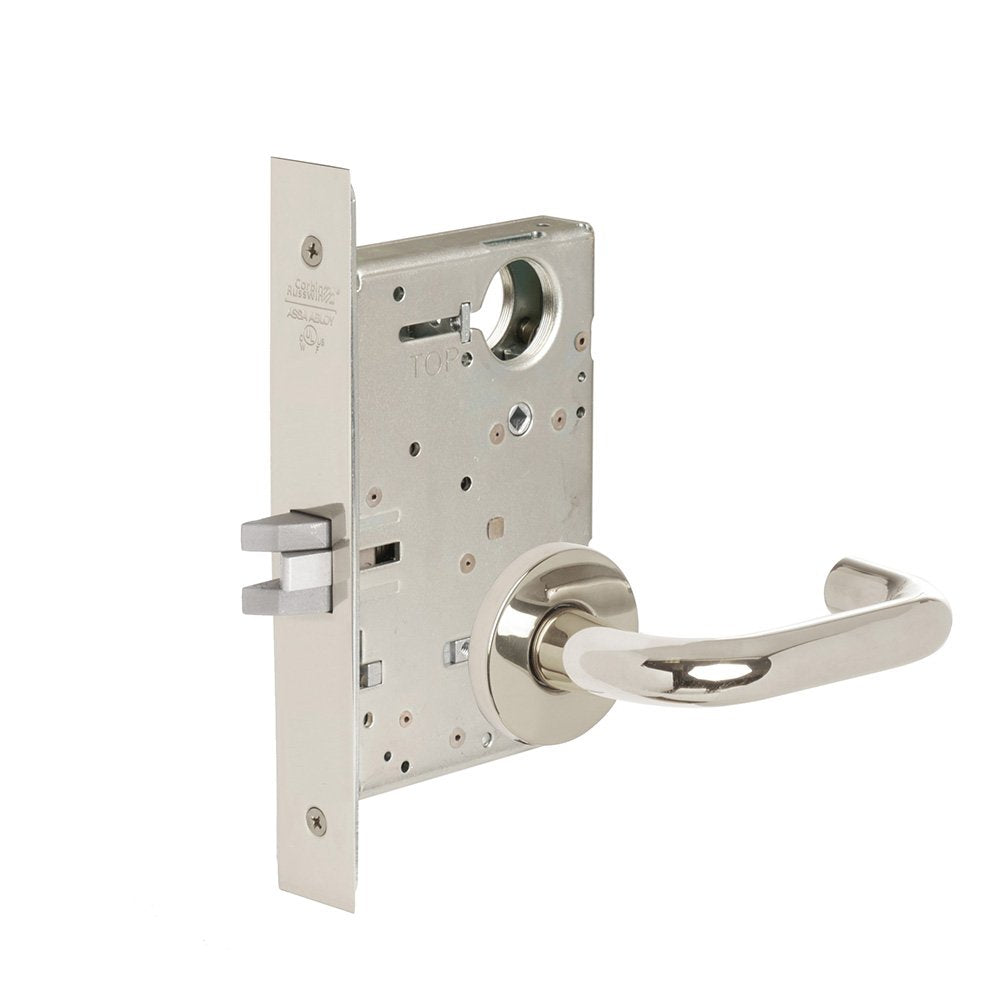

Corbin Russwin 2010 Mortise Passage Lock

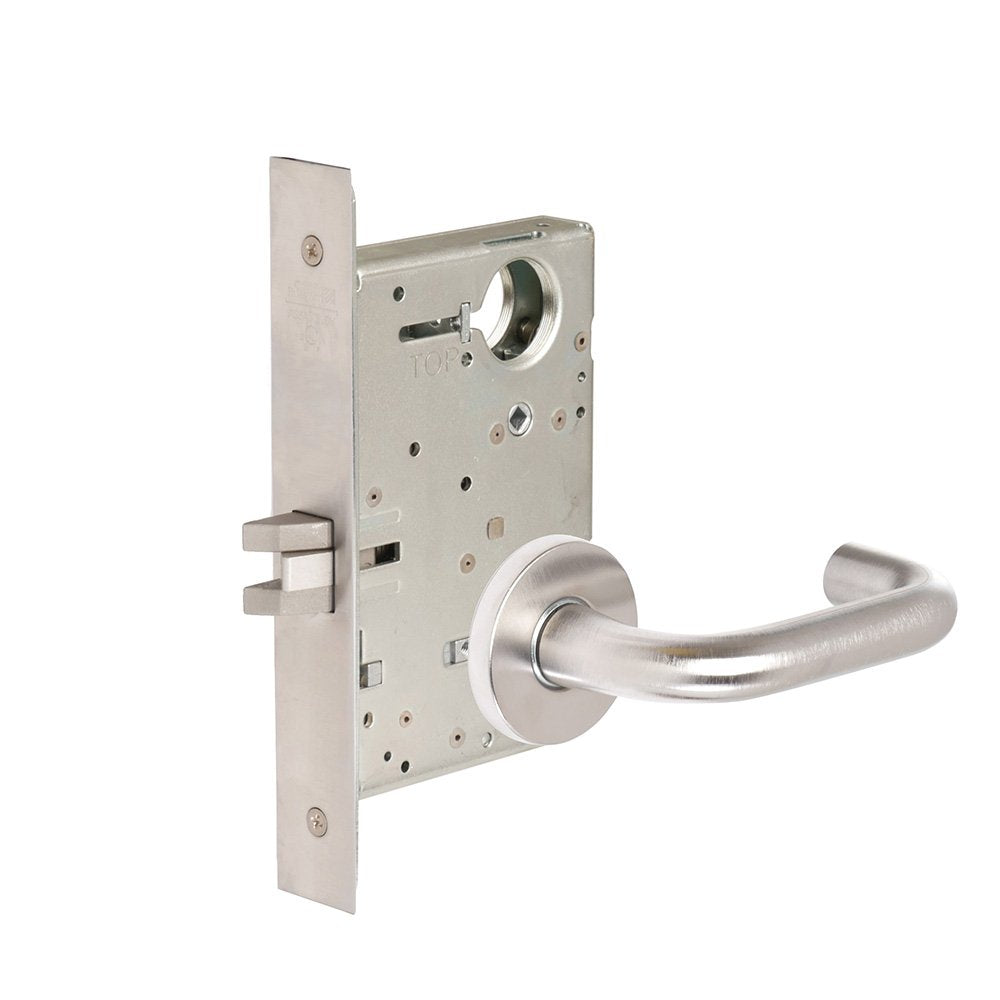

ML2010 LW A (626 or 625)

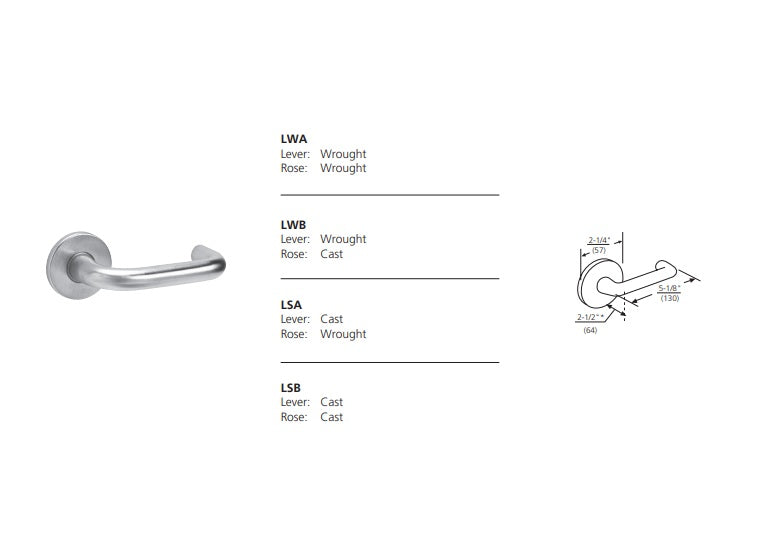

Series: ML2000. ANSI function: F01, Passage or Closet. ANSI/BHMA standard: A156.13, Series 1000, Grade 1. UL Listed: yes, UL10C compliant, fire doors up to 3-hour rating. ULC Listed: yes. ADA Compliant: yes. Florida Building Code Windstorm Certified: yes. ASTM E330 Certified: yes. CAL FIRE approved: 3775-1305:0130. Lever: Lustra (LW). Rose: A round rose. Handing: field reversible. Latchbolt throw: 3/4". Backset: standard 2-3/4" (minimum 2-3/8"). Door thickness: standard 1-3/4" (range 1-3/8" to 4"). Door types: wood, hollow metal, bullet-resistant doors. Strike: ANSI straight lip standard. Cylinder: none in passage function. Multi-function lockbody: yes, the same lockbody accepts all 63 ML2000 functions.
