HES1006CLB Electric Strike

HES1006CLB Electric Strike

HES1006CLB Electric Strike 12/24D 630 Finish LBM

Brand: HES
Starting at$450
$450
Sale Sold out
Nationwide Delivery
Shipping calculated at checkout.
View full details
Product Overview

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

1006CLB-12/24D-630-LBM

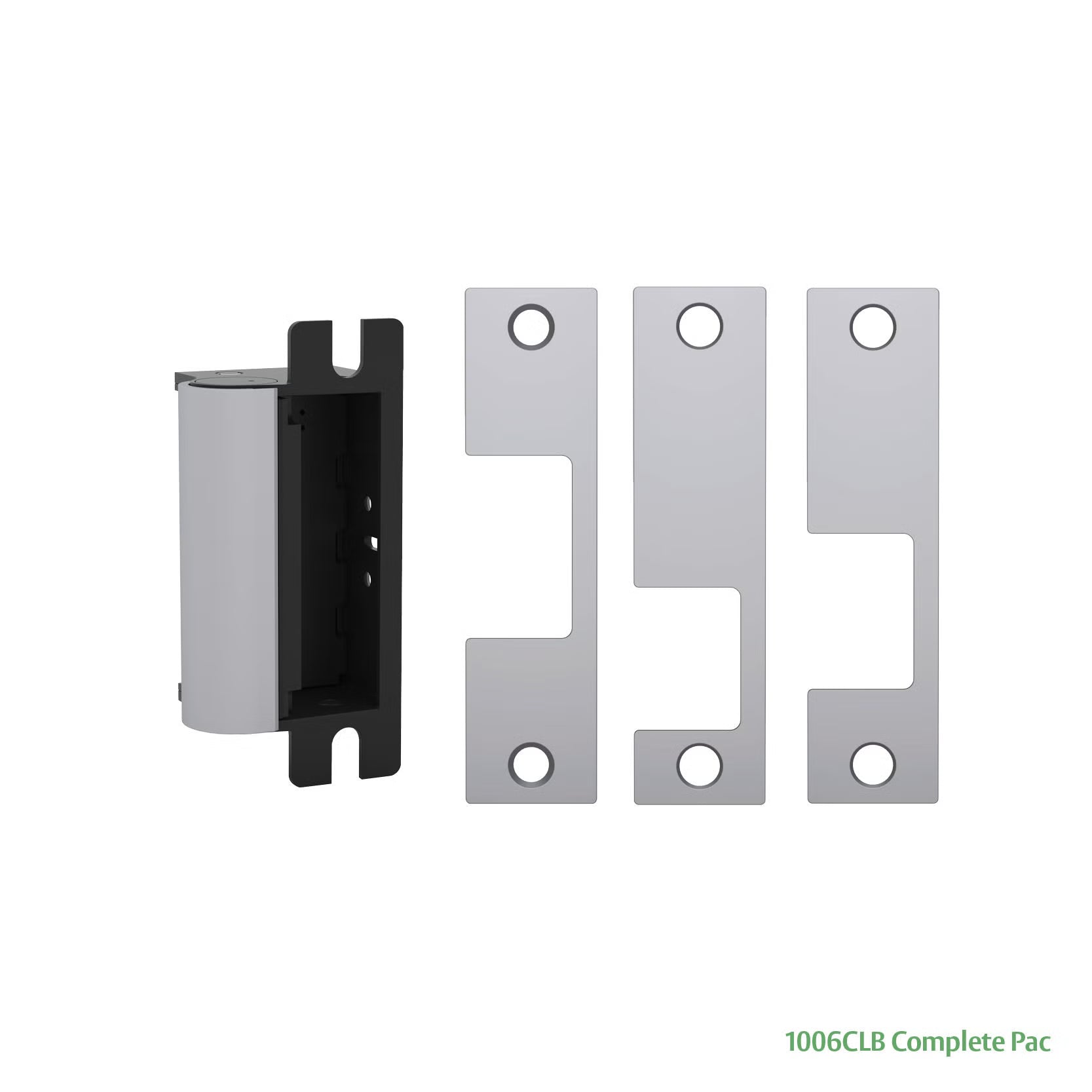

1006=Universal Electric Strike CLB=Complete Electric Strike Latch for latch bolt locks; Includes J,K,KD and KM faceplates. Fail Secure 630=Satin SS Finish LBM=Latch bolt Monitor.

Application
  • Adjustability : Horizontal
  • Surface Mounting : Cutting Required
  • Frame Material : Metal|Wood
  • Shim Type : Field Adjustable
  • Latchbolt Accommodation : Up to 3/4"
Electrical
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Strike Monitor|Latchbolt Monitoring
Strength & Durability
  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 350
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Fail Safe/ Fail Secure
  • Grade : Grade 1
General Specifications
  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
  • Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
  • Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)
