PDQ XGT148 Classroom Cylindrical Lock

PDQ XGT148 Lever Lockset, Classroom Function, Extra Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike, Schlage C Keyway

The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. SCC Keyway w/ (2) Keys

ANSI Function F84 – Latchbolt operated by lever from either side. Outside lever locked by key from outside. Outside lever unlocked by key from outside. Inside lever always operates latch. Philadelphia Lever

• Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
• 13-gauge steel anti-rotation plate enhances stability
• Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
• Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)
• *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
• UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
• Certified to ANSI/BHMA A156.2 Grade 1 standards
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

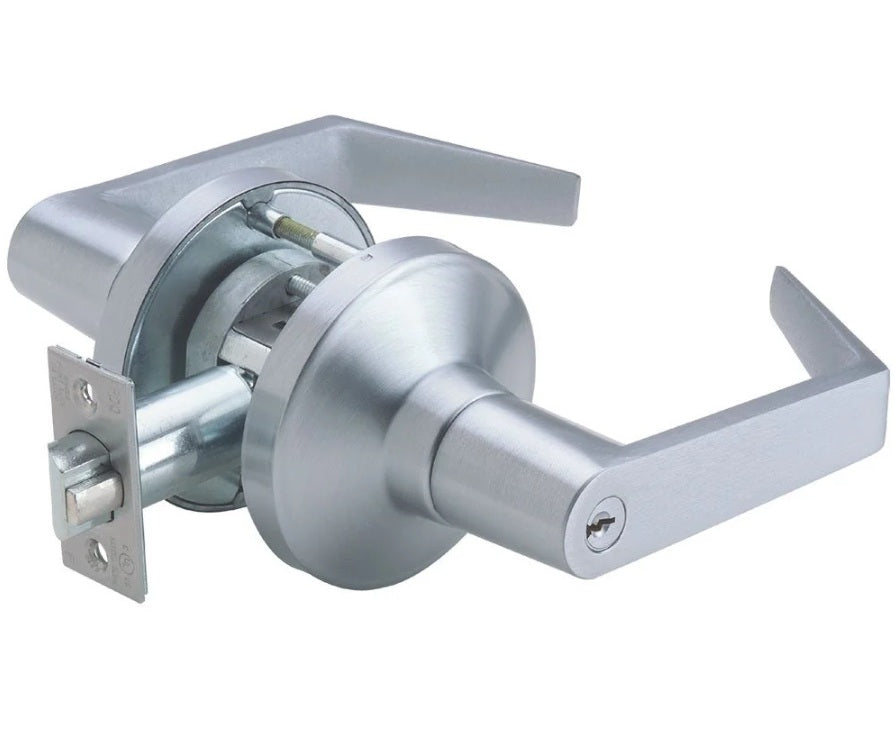

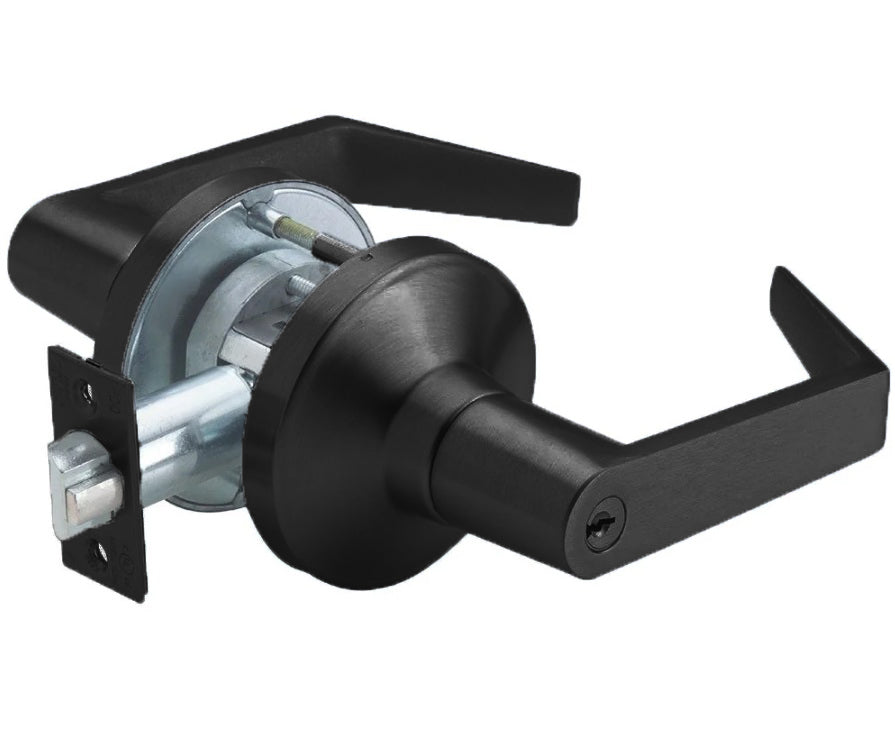

• PHL (Philadelphia) Lever Design Shown
