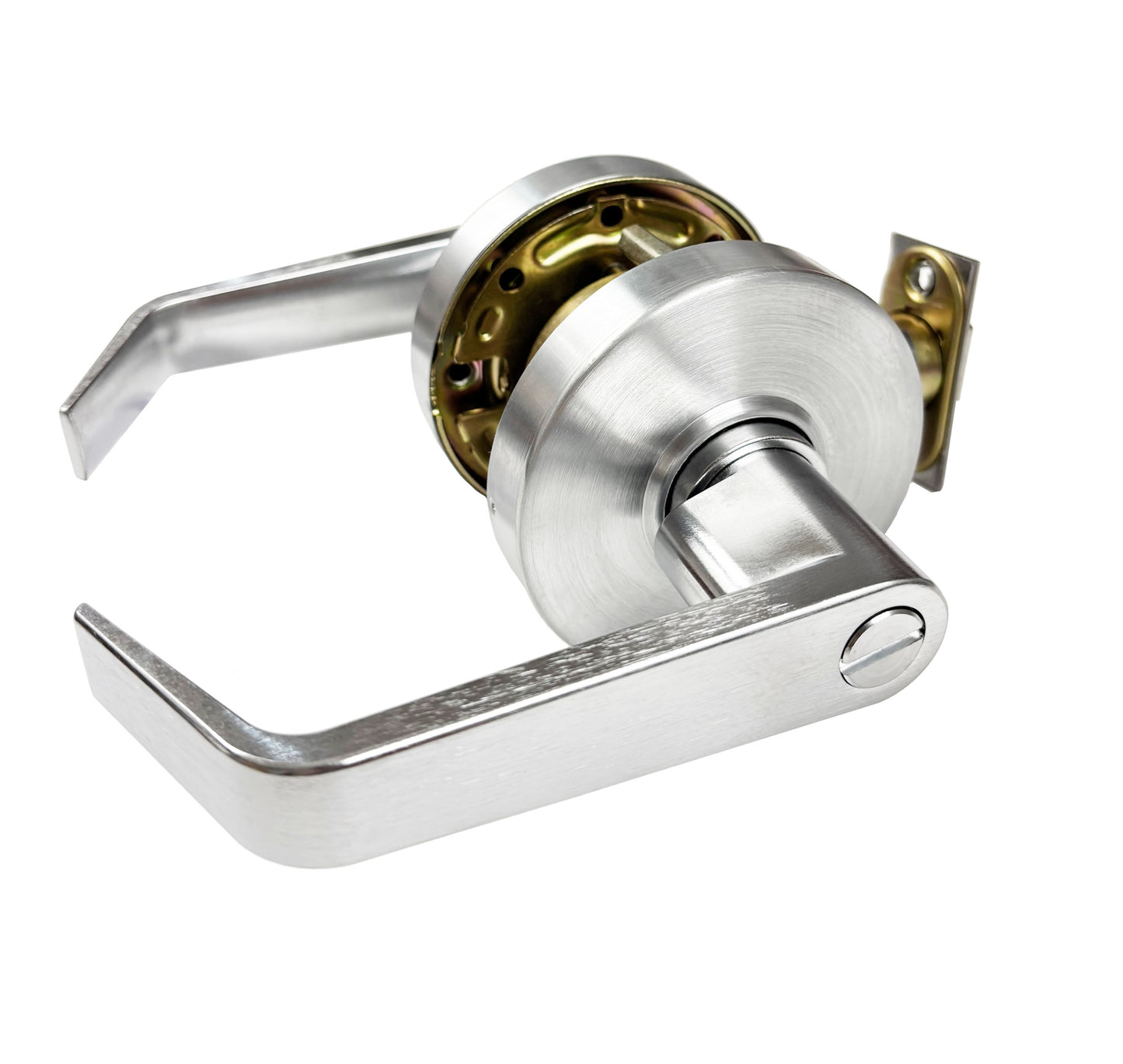

SND Series Privacy Cylindrical Lock L6

Cylindrical Lock w/ L6 Lever in 626 Finish - #31454/ CL1040-L6-626

GENERAL
Full length 4 ¾” lever handle with ⅜” return.
Rose diameter 3 ½”. Key removable outside lever for fast re-keying.
Non-handed levers. Concealed mounting screws.
Free turning handle in the lock position without retracting the latch,
to deter breaking of handle.
Entrance Function
DOOR RANGES
1 ⅜” to 1 ¾” thickness. 2” to 2 ¼” thickness also available on request.
HOUSING
Cold Rolled Steel and Zinc Dichromate finish for rust resistance with
precision cast steel retractor. 2 ⅛” diameter bore.
